| If your volume control is
10K, R1 = 68.1K and R2 = 30.1K. |
| If your volume control is
20K, R1 = 76.8K and R2 = 15K. |
| If your volume control is
25K, R1 = 84.5K and R2 = 15K. |
| If your volume control is
50K, R1 = 75K and R2 = 10K. |
| If your volume control is
100K, R1 = 82.5K and R2 = 10K. |
| If your volume control is
250K, R1 = 86.6K and R2 = 10K. |
|

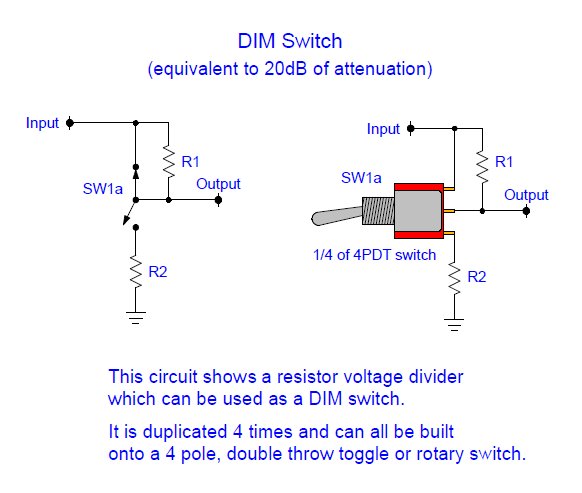

For installation: insert the DIM
switch in-line = between the input jacks and your volume control.
|
