Mode Switch

Full Featured Mode Switch

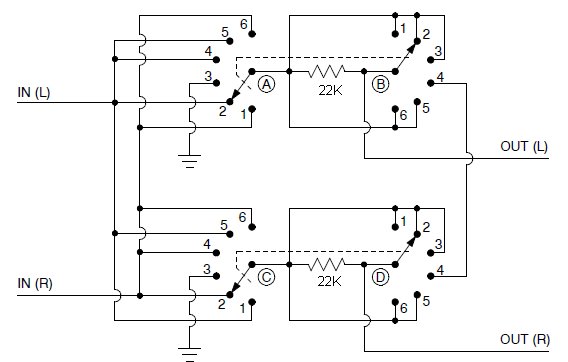

Uses a 4 pole, 6 position switch (Goldpoint P/N 2P-6T-2D)

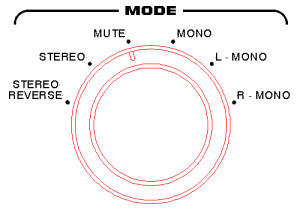

1 = STEREO REVERSE 2 = STEREO 3 = MUTE 4 = MONO 5 = LEFT MONO 6 = RIGHT MONO	Note: The 22K resistors make it so that the system will not sound louder when in Mono. (They are used only in full Mono mode, switch position 4).
