Prices
Note your Part Number(s) and Price(s), and then go to the How To Order page.
For further help in choosing your attenuator value, see the Detailed Information Page.
V24 V24 level controls come with 0.5% precision resistors already installed.
Part Number: V24 - (# of channels) - (xx = value). example: V24-2-50K = V24, Stereo, 50K
Stock Values:
Configurations:
Stock Resistor Type:
10K, 25K, 50K, 100K and 250K
Mono, Stereo, Quad, 6-Channel
Precision 0.5% tolerance, 25ppm, 0805 size, low noise, THIN Film
V24-1 (mono)
V24-1-(value) (Mono): $89
V24-2 (stereo)
V24-2-(value) (Stereo): $165

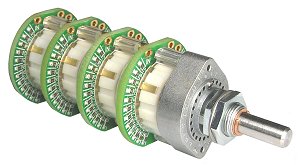

V24-4 (quad)
V24-4-(value) (Quad): $279

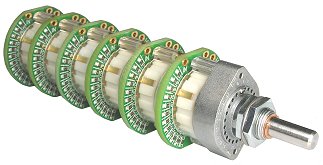

V24-6 (6-channel)
V24-6-(value) (6-channel): $384


Note: V24 printed circuit boards are round shaped, as shown above, except for the 5K value. The 5K value uses square shaped printed circuit boards as shown at right --->
All V24
PC Boards are 1.25" tall x 1.35" wide.

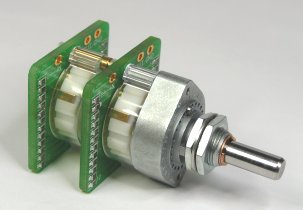

V24-5K
V47 V47 level controls come with 0.5% precision resistors already installed.
Part Number: V47 - (# of channels) - (value). example: V47-2-50K = V47, Stereo, 50K
Stocked Values:
Configurations:
Stock Resistor Type:
10K, 25K, 50K,100K and 250K
Mono, Stereo, Quad, 6-Channel
Precision 0.5% tolerance, 25ppm, 0805 size, low noise, THIN Film
V24-2 (stereo) for
Although 24 positions is plenty for most applications, having 47 positions is desirable in some situations. The turning torque is smoother and the decibel step sizes are smaller.

PC Boards: 1.5" wide x 1.4" tall.
Also see: stepped attenuator lengths.

The V47s have 1.5dB per step.
V47-1-(value) (mono): $134 V47-4-(value) (quad): $416
V47-2-(value) (stereo): $246 V24-6-(value) (6-chan.): $586
V24C - (Blank) Custom Stepped Attenuators:
V24C are blank stepped attenuator switches. They DO NOT have resistors installed.
To make your own custom value stepped attenuators, procure and install 23ea 1/4 or 1/2 watt thru-hole resistors per channel, each with one lead bent over. You can determine your own resistor brand and resistor values or use the recommended brands and Goldpoint resistor lists shown here.

V24C Custom Switch
V24C (Older, wider PC Boards)
V24C-1 (mono): $69 V24C-4 (quad): $194
V24C-2 (stereo): $127 V24C-6 (6-channel): $258
V47C - (Blank) Custom Stepped Attenuators:
V47C are blank stepped attenuator switches. They DO NOT have resistors installed.
To make your own custom value stepped attenuators, procure and install 46ea 1/4 watt thru-hole resistors per channel, each with one lead bent over. You can determine your own resistor brand and resistor values, or use the recommended brands and Goldpoint resistor lists shown here.


V47C = 1.55" tall x 1.90" wide



V47C-SQ = 1.3" tall x 1.35" wide
Please note: Populating the small V47C-SQ units with resistors (as shown at right) ---> requires not only steady hands and a sharp soldering iron tip, but also a magnification station or magnification lamp of some kind. Consider the V47C-SQs to be for experienced assemblers.

Instead of getting V47C or V47C-SQ (Custom) blank switches, it is easier to simply purchase our V47 (Standard) units, which come with precision SMD resistors already installed, and are fully tested.
V24C-2 (stereo)
V47C-1 or V47C-SQ-1 (mono): $81 V47C-4 or V47C-SQ-4 (quad): $221
V47C-2 or V47C-SQ-2 (stereo): $153 V47C-6 or V47C-SQ-6 (6-chan): $289
Selector Switches
Selector Switch (one deck)
Selector Switch (two decks)
1 Deck
2 Decks
1 Deck = $77
2 Decks = $126
3 Decks = $164
4 Decks = $203
5 Decks = $237
6 Decks = $277
We have a web page which shows schematic diagrams for each type of switch we offer.
Click here or on the selector switch pictures above to see this and other related information.
More Example Part Numbers:
1P-8T-1D = 1 Pole, 8 Positions, 1 Deck
2P-6T-1D = 2 Poles, 6 Positions, 1 Deck
3P-4T-1D = 3 Poles, 4 Positions, 1 Deck
4P-3T-1D = 4 Poles, 3 Positions, 1 Deck
2P-6T-2D = 4 Poles, 6 Positions, 2 Decks (2 Poles per deck)
2P-5T-3D = 6 Poles, 5 Positions, 3 Decks (2 Poles per deck)
4P-3T-4D = 16 Poles, 3 Positions, 4 Decks (4 Poles per deck)
Knobs for 6mm Shafts
Custom Machined (solid) Aluminum Knobs
These solid aluminum knobs were specially designed for Goldpoint stepped attenuators and selector switches (which have 6mm (.237") diameter shafts). If you want to use knobs which were designed for 1/4" shafts on Goldpoint stepped attenuators or selector switches, it is recommended that you wrap the shafts with a few layers of Kapton tape or common Scotch tape to ensure a properly centered fit.
Machined Aluminum Knobs
1.1" Diameter (K1.1) $17
Description
Part Number
Silver Satin
K1.1-S-SA
Silver Knurled
K1.1-S-KN
Black Satin
K1.1-B-SA
Black Knurled
K1.1-B-KN
1.25" Diameter (K1.25) $19
Description
Part Number
Silver Satin
K1.25-S-SA
Silver Knurled
K1.25-S-KN
Black Satin
K1.25-B-SA
Black Knurled
K1.25-B-KN
1.4" Diameter (K1.4) $22
Description
Part Number
Silver Satin
K1.4-S-SA
Silver Knurled
K1.4-S-KN
Black Satin
K1.4-B-SA
Black Knurled
K1.4-B-KN
Got Knobs?
Goldpoint Passive Preamps

SA1
SA2
SA3+2
SA4
SA1$379
SA1-47: $464
SA1M: $416
SA1M-47: $499
RCA sets: 1 In/1 Out
SA2$471
SA2-47: $556
2 RCA Inputs/Outputs
SA3+2$655
SA3+2-47: $749

RCA sets: 3 In, 2 Out
SA4$572
SA4-47  $617
SA4M  $569
SA4M-47

$654

4 RCA Inputs/Outputs
Precision Balanced Level Controls
SA1X
SA2X-I
SA2X-O
SA1X: $540
SA1X-47: $655
SA1XM: $607
SA1XM-47: $722
Balanced Stereo
XLR sets: 1 In, 1 Out
SA2X-I: $661
SA2X-I-47: $776
SA2XM-I: $728
SA2XM-I-47: $843
Balanced Stereo
XLR sets: 2 In, 1 Out
SA2X-O: $661
SA2X-O-47: $776
SA2XM-O: $728
SA2XM-O-47: $843
Balanced Stereo
XLRsets: 1 In, 2 Out



Input/Output Switching Controls
SW2X-I
SW2X-O
SW3+2
SW4
SW2X-I: $433
Balanced Switching,
XLR sets: 2 In, 1 Out
SW2X-O: $433
Balanced Switching,
XLR sets: 1 In, 2 Out
SW3+2: $508
Single Ended Switching
RCA sets: 3 In, 2 Out
SW4: $413
Single Ended Switching,
4 RCA Inputs
Project Enclosures
EN1 and EN2
Project Enclosures
EN1-A: $44
EN1-B: $56
EN1-C: $68
EN2-A: $50
EN2-B: $63
EN2-C: $75

Virtual Ground PC Boards



Shaft Couplers
Shaft Coupler
Need to mount your Stepped Attenuator or Selector Switch closer to the rear of your chassis?

Our custom machined shaft couplers are designed for 1/4" (.250") round shafts and will also work with 6mm (.237") shafts. Each has four set screws. They are finished in bright blue anodize.

Goldpoint part number SC1 - - - - - - - - - $8
Panel Bearings:
1/4" aluminum rod is commonly available from many hardware stores. Here's one on-line source: speedymetals.com & 1/4" extruded aluminum rod

You will want to purchase a "panel bearing", (or "panel bushing") for use where your new 1/4" extended shaft goes through your front panel.
Panel Bearing
Abbratron H. H. Smith part number 119

Newark Electronics part number 44F7417
