The SW2X
Balanced Stereo Input/Output Switching Controls
|
|
|
|
Need
to select from two Balanced Stereo Input Sources or select to two
Balanced
Stereo Output targets?
Your
off-the-shelf solution is to use a Goldpoint Level Controls (tm) SW2X
Input/Output Selector.
|
|
|
|
Examples
of uses:
SW2X-I:
(2 XLR Input Sets): You have two mixing boards and want to select which
goes to your monitor speakers.
SW2X-O:
(2 XLR Output Sets): You want to select which of two sets of monitor
speakers
to listen to. |
 |
Connectors:
(Neutrik
XLR, with gold-plated pins.)

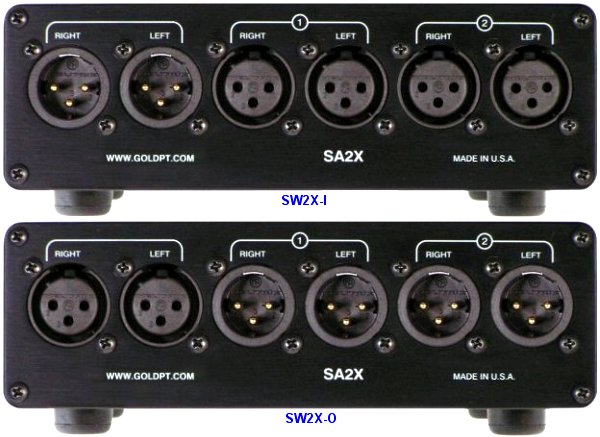

SW2X-I: Two 2 XLR Input sets, One Output set. SW2X-O: Two 2 XLR Output sets, One Input set.
(These are the same rear panels used on our SA2X Passive Preamps.) |
|
Selector
Switch: Goldpoint
4P-2T-1D |
|
Wiring: High
grade, silver-plated copper, multi-stranded, with Teflon jacketing. |
|
Chassis: Aluminium
clam-shell, 1/4" front and rear panels. |
|
Dimensions: 2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 1 1/4 lb. |
|
