The SA3+2 Passive Preamp and SW3+2 Switcher
|
|
|
|
|
|
Available mid April, 2024
The
Goldpoint SA3+2 easily out performs other passive
preamplifiers.
with it's superior clarity, transparency, and precision. It offers 24 or 47-position
precision
stepped attenuation, three Input sets and two Output sets. The SA3+2 is 100% passive,
designed
to improve sound quality while replacing (often unnecessary) active preamplifiers.
|
|
|
|
No
distortion is added to your signal path while performing level control.
(Active
preamps add in at least
some distortion.) |
|
|
A 3-position
selector switch allows level control for multiple signal sources. |
|
|
A second 3-position
selector switch provides outputs to RCA jack sets A, B, or A+B.. |
|
|
Goldpoint
precision stepped attenuator for low noise and excellent channel-to-channel
signal level matching. |

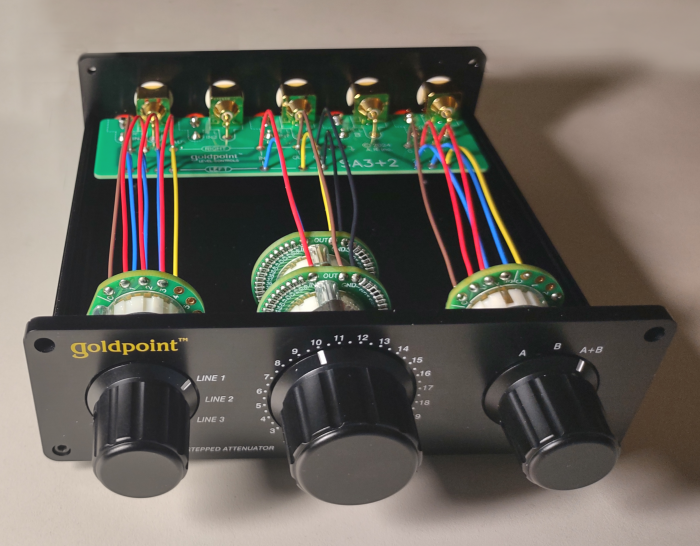

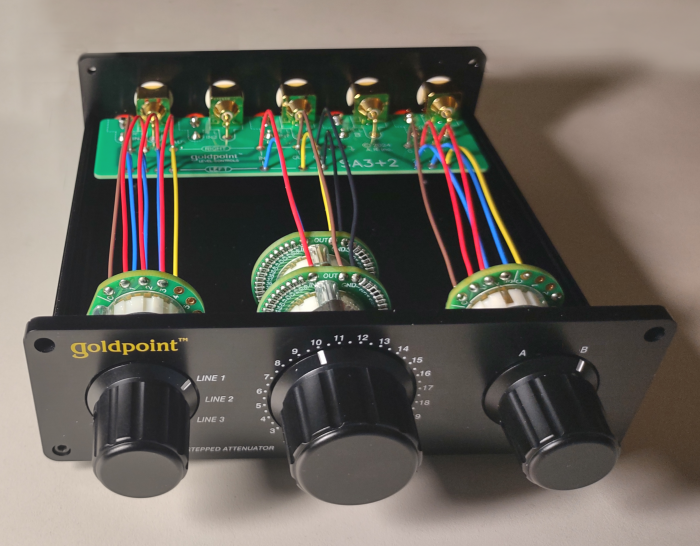

The interior will look much like this SA4
|
Volume
Control: SA3+2 (stereo):
Goldpoint low-noise, precision Stereo 24 or 47 Position Stepped Attenuator. |
|
Selector
Switches: 2ea Goldpoint 2P-3T-1D. |
|
Inputs
& Outputs: Three sets of Stereo Inputs and two sets of
Outputs. |
|

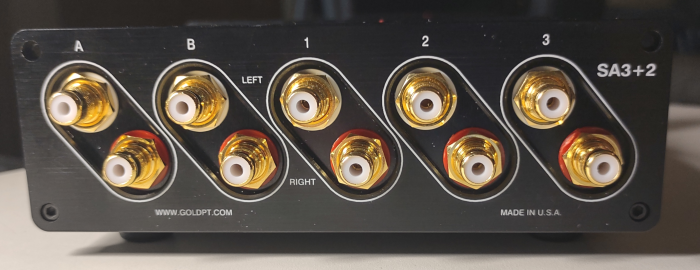

Rear
Panel RCA Jacks: Gold-plated, heavy duty solid brass, right angle
PC board style. |
|
Wiring: High
grade, silver-plated copper, multi-stranded, with Teflon jacketing. |
|
Chassis: Aluminium
clam-shell, 1/4" front and rear panels. |
|
Dimensions:
2.3" Tall x 6.2" Wide x 7.0" Long |
|
Weight: 2 lb. |
|
