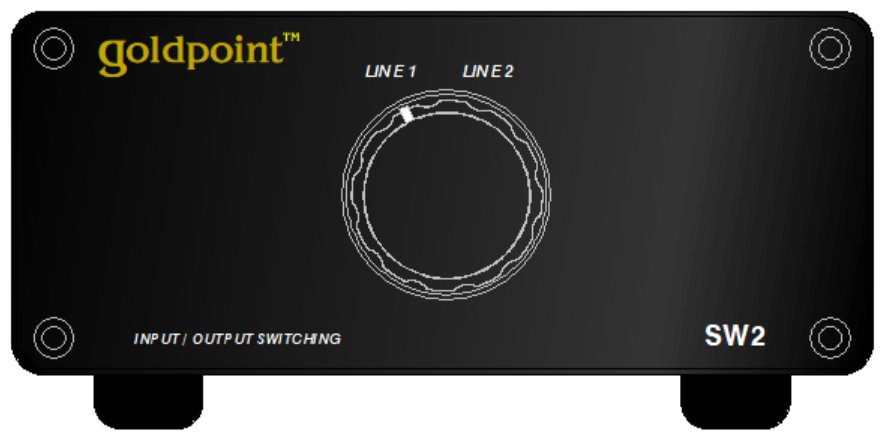

The SW2 Switcher

sw2_fp
Need to select one additional source, or send a music source to two places,
such as a power amplifier or headphone amplifier?
The Goldpoint SW2.may be the solution



The SW2 is reversible. You can use it as a 2 In / 1 Out - or as a 1 In / 2 Out.



Selector Switch:   Goldpoint 2P-2T-1D
Inputs & Outputs:   Two Stereo sets.
Rear Panel RCA Jacks:  Gold-plated, heavy duty solid brass, right angle PC board style.
Wiring:  High grade, silver-plated copper, multi-stranded, with Teflon jacketing.
Chassis:  Aluminium clam-shell, 1/4" front and rear panels.
Dimensions:   2.3" Tall  x  4.7" Wide  x  7.0" Long
Weight: 1 1/2 lb..

Prices:
Part Number Volume Control
Price
SW2 2 Input and 1 Output
$325

Note about our knob dial pattern: The Goldpoint SA box front panel dial pattern shows the numbers 0 to 23, with a dot in between each adjacent number. When a 24-position stepped attenuator is installed, each knob position points to a number. When a 47-position stepped attenuator is installed, each knob position points to a number then a dot, alternately.


Heavy duty gold plated RCA jacks
are recessed into our 1/4" thick rear panels.
___________________________________________

Note: Silver knobs (instead of Black)
are a free option on all of our Passive Preamps,
Precision Level Controls, and Input/Output Switchers.
(Just ask for Silver Knobs when ordering.)
